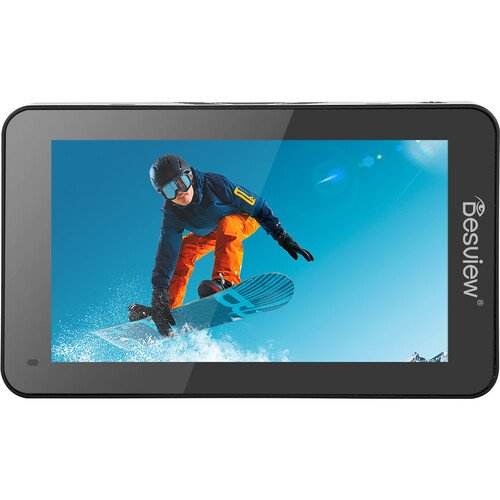

Desview R6II 5.5″ Ultra-High Bright 1080p Touchscreen Monitor with 4K60 HDMI I/O

  • Full HD 1080p Touchscreen Display
  • DCI/UHD 4K60 HDMI 2.0 Input & Output
  • 2800 cdm² Brightness
  • Waveform, Zebra, Audio Meters, 3D LUTs
  • 10-Bit Color Depth, DCI-P3 Color Gamut
  • Combo L-Series & LP-E6 Battery Plate
  • 3.5mm Headphone Jack
  • Built-In Adjustable Cooling Fan
  • 2.1mm 7 to 24V Input & 8V Output Power
  • Includes Tilting Monitor Mount

KShs 32,500.00

Description

Desview R6II 5.5″ Ultra-High Bright 1080p Touchscreen Monitor with 4K60 HDMI I/O in Kenya

Desview R6II 5.5″ Ultra-High Bright 1080p Touchscreen Monitor with 4K60 HDMI I/O Price in Kenya is Kshs.32500.The R6II 5.5″ Ultra-High Bright 1080p Touchscreen Monitor with 4K60 HDMI I/O is a compact 5.5″ on-camera touchscreen monitor with a lightweight yet durable polycarbonate and ABS plastic shell. It features an ultrabright 1920 x 1080 display with 2800 cd/m² brightness and a 1000:1 contrast ratio suitable for use in exteriors without a sun hood. The monitor supports up to DCI 4K60 through its HDMI input, scaling the signal for display, and the loop-through HDMI 2.0 output allows you to send the original unmodified camera signal downstream to other monitors or connect to a wireless transmitter for easier transmission.Buy Desview R6II 5.5″ Ultra-High Bright 1080p Touchscreen Monitor with 4K60 HDMI I/O at Starmac Kenya.

The R6II features built-in 3D LUTs and also allows you to import custom ones via a USB port, and the monitor supports SDR and HDR viewing, including HLG and PQ. Built-in signal and camera tools include histogram, false color, peaking, zebra, and more. Display functions are easily accessed by the touchscreen and include image freeze, L/R flip, aspect ratio adjustment, and anamorphic de-squeeze selection.

The monitor features a headphone jack, and a built-in adjustable fan draws air in from the sides and back of the monitor, expelling out of the top. Two 1/4″-20 mounting holes are provided, on the bottom and right side, allowing for horizontal and vertical mount. A tilting monitor mount is included for attaching the monitor to your camera’s hot shoe or a cage with a shoe mount. The monitor has a combination L-series/LP-E6 battery plate and a 7-24 VDC power input, as well as an 8 VDC power output port to power your camera using a separately available dummy battery or cable.

Desview R6 II Specs

Key Specs
Display Size
5.5″ / 14.0 cm
Native Resolution
1920 x 1080
Touchscreen
Yes
HDR Support
No
Video I/O
1x HDMI 2.0 Input
1x HDMI 2.0 Output
Media/Memory Card Slot
No
Video Format
HDMI
DCI 4K: 60/59.94/50/29.97/25/24
UHD 4K: 60/59.94/30/25/24
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
576i: 50
480p: 60/59.94
480i: 60/59.94
Battery Type
1x LP-E6, L-Series
Power Consumption
12 W (Typical)
24 W (Maximum)
Mounting
1x 1/4″-20 Female (Bottom)
1x 1/4″-20 Female (Right)
Display
Panel Type
IPS-Type LCD
Display Size
5.5″ / 14.0 cm
Screen Area
5.12 x 2.6″ / 129.96 x 67 mm
Native Resolution
1920 x 1080
Aspect Ratio
16:9
Viewing Angle
Horizontal: 178°
Vertical: 178°
Touchscreen
Yes
Maximum Brightness
2800 nits / cd/m2
Contrast Ratio
1000:1
Color Support
16.7 Million Colors (8-Bit)
HDR Support
No
Pixels Per Inch (ppi)
401 ppi
LUT Support
Yes
Inputs / Outputs
Video I/O
1x HDMI 2.0 Input
1x HDMI 2.0 Output
Audio I/O
1x 1/8″ / 3.5 mm Headphone Output
Built-In Speaker
No
Power I/O
1x Barrel 2.1 mm (24 VDC) Input
1x Barrel 2.1 mm (8 VDC) Output
Other I/O
1x USB-A (Firmware/LUT Upload) Input
Media/Memory Card Slot
No
Wi-Fi
No
Bluetooth
No
Mobile App Compatible
No
Format Support
Video Format
HDMI
DCI 4K: 60/59.94/50/29.97/25/24
UHD 4K: 60/59.94/30/25/24
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
576i: 50
480p: 60/59.94
480i: 60/59.94
Power
Input Power
7 to 24 VDC
Battery Type
1x LP-E6, L-Series
Power Consumption
12 W (Typical)
24 W (Maximum)
Mounting
Mounting
1x 1/4″-20 Female (Bottom)
1x 1/4″-20 Female (Right)
Software Monitoring Features
  • False color
  • False color ARRI
  • Zebra
  • Luminance waveform
  • RGB waveform
  • Luminance histogram
  • RGB histogram
  • Focus peaking
  • Safety marker
  • Center marker
  • Audio meters
  • Color temperature adjust
  • Zoom
  • Pixel-to-pixel
  • Display flip
  • Grid line overlay
  • Anamorphic mode: 1.33x, 1.5x, 1.66x, 1.79, 2.0
HDR Support
The monitor supports SDR and HDR monitoring, including HLG and PQ
LUT Support
The R6II supports uploading LUTs via the USB-A port
